Front PTO

L122873-UN-02JAN95

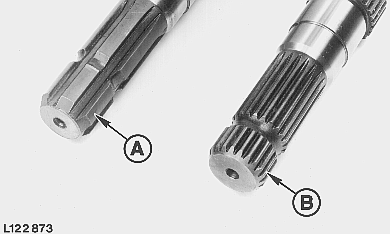

CAUTION: Both front PTO versions operate at a rated speed of 1000 rpm. This applies to the clockwise rotating PTO with 6 splines (A) as well as to the counterclockwise rotating PTO with 21 splines (B).

NOTE: Direction of rotation of front PTO is seen in relation to the tractor's direction of forward travel.
