Check Transmission/Hydraulic System Oil Level

IMPORTANT: Check oil level when oil is cold. If possible, check the oil level in the morning after the tractor has been standing overnight.

  1. Park tractor so that it is level.

  2. Apply park brake or engage park lock.

  3. Lower draft links, front loader, front implements and other implements that draw oil from the transmission.

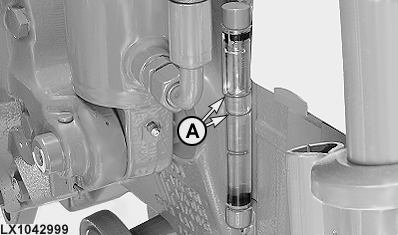

  4. LX1042999
    LX1042999-UN-10JUL07

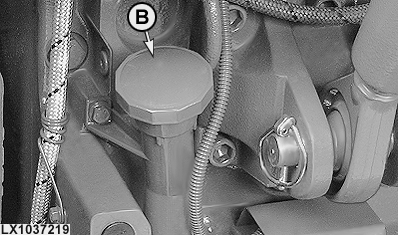

    LX1037219
    LX1037219-UN-21OCT05

    A - Sight-glass (l.h. side of transmission)

    B - Filler neck

    6530, 6534 and 6630 tractors

    Oil level should be between marks (A) on the sight-glass. If it is not, add more oil at filler neck (B).

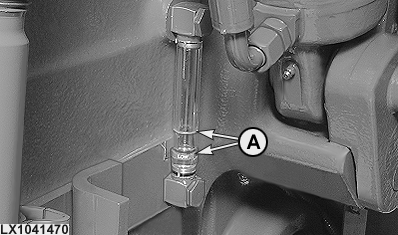

  5. LX1041470
    LX1041470-UN-19DEC06

    LX1037219
    LX1037219-UN-21OCT05

    A - Sight-glass (r.h. side of transmission)

    B - Filler neck

    6830 and 6930 tractors

    Oil level should be between the marks on sight-glass (A). If it is not, add more oil at filler neck (B).
