Installing Weights on Rack-and-Pinion Axle

LX001301-UN-09AUG94

LX001302-UN-09AUG94

A - Rim mark

B - Special screws

C - Notch

D - Screws for next weight

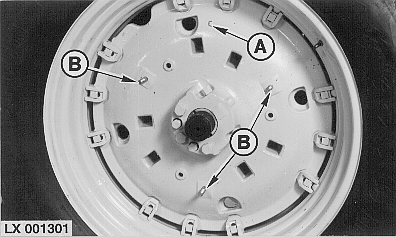

Position the wheel so that rim mark (A) is at the top. Insert special screws (B) from inside of rim and drive them outward.

NOTE: If you want to install more than one weight, drive the three special screws through the square countersunk bores in the first weight (from the inside, and before you install it). Install the second weight with its notch separated from the notch on the first weight by 180°. Install the third weight turned the same way as the first weight.

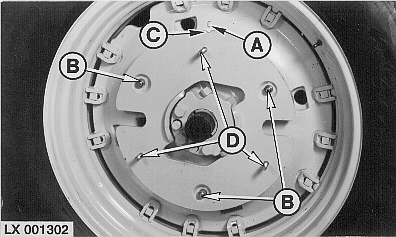

Install weight so that notch (C) on weight is aligned with mark (A). Tighten special screws (B) securely.

NOTE: Screws (D) shown in illustration are for the second weight.
