Stabilizing System (If Equipped)

LX009469-UN-02JAN95

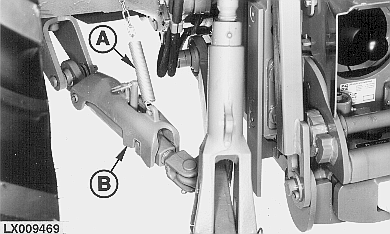

The stabilizing system is operated by means of chain (A) and flap cover (B). If flap cover (B) is raised, the draft links have lateral play, otherwise they are locked.

Chain (A) short:

Draft links are locked in raised position (rigid setting), in lowered position they have lateral play.

Chain (A) long:

Draft links are locked in all positions.
