Engaging and Operating Creeper Transmission

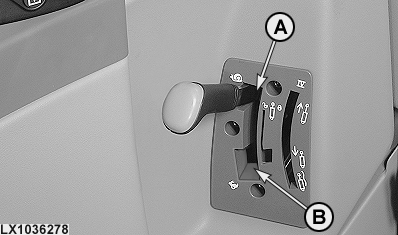

LX1036278-UN-24NOV06

A - Creeper speed

B - High speed

IMPORTANT: To maximize transmission reliability:

• Never engage or disengage creeper transmission with engine speed higher than 1000 rpm.

• Operate creeper transmission in ranges A, B or C only.

• Do not operate creeper transmission with ground engaging equipment requiring high horsepower.

NOTE: Shifting force required to engage creeper can be high compared to force required on other mechanical shift levers. Shifter is not synchronized or spring assisted so tractor must be stopped. Shifting range shift lever to neutral or feathering the clutch can provide easier creeper engagement or disengagement.

To Operate Creeper Transmission:

1. Stop tractor by depressing clutch pedal.
2. Reduce engine speed below 1000 RPM.
3. Move Left-Hand Reverser Lever to Neutral.
4. Select range A, B or C.
5. Move creeper lever to engage or disengage creeper transmission.
