Check Oil Level in MFWD Axle Housing

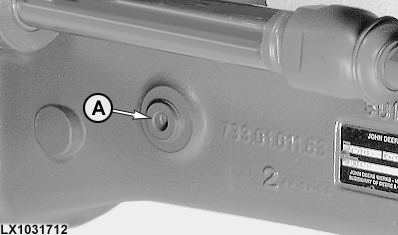

LX1031712-UN-09JUL03

CAUTION: If the oil is hot, it may be under pressure. Unscrew the level plug slowly.

Remove level plug (A). Oil must be level with plug bore. Fill to proper level, if necessary. Tighten level plug to 90 Nm (66 lb.-ft.). Always use a transmission oil listed in the Fuel, Lubricants, Hydraulic Oil and Coolant section.

NOTE: The position of the level plugs varies depending on axle type.
