Change Oil In Front-Wheel Drive Axle Housing

LX1031715
LX1031715-UN-09JUL03

LX1031716
LX1031716-UN-09JUL03

CAUTION: If the oil is hot, it may be under pressure. Remove drain screw slowly.

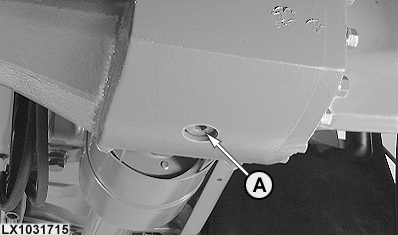

  1. Remove drain screw (A) and drain oil into a suitable container.

  2. Re-install drain screw and tighten to 90 Nm (66 lb.-ft.).

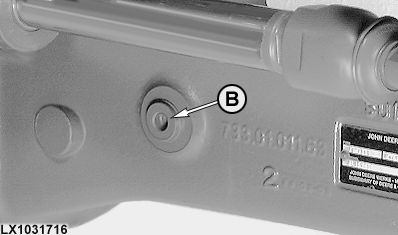

  3. Remove oil level/filler plug (B). Fill with fresh oil. The oil level must be up to the filler hole. Re-install plug.

NOTE: Location of screws varies depending on axle type.

Recommended oil

Hy-Gard™ transmission/hydraulic oil. See also Section 80 (Fuel, Lubricants, Hydraulic Oil and Coolant).

Capacity

6.5 L (1.7 U.S.gal.)

Hy-Gard is a trademark of Deere & Company
