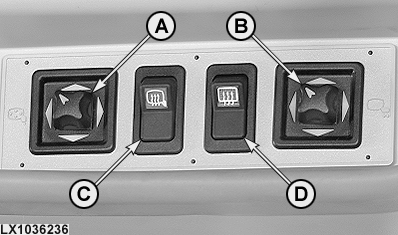

Control Switches for Rear-View Mirror and Rear-Window Heater (If Equipped)

LX1036236-UN-03JUN05

A - Mirror adjuster

B - Mirror arm adjuster

C - Mirror heater switch

D - Rear window heater switch

Turn the arrow on knobs (A) and/or (B) towards the mirror that is to be adjusted. Press knob (A) up/down or left/right to adjust the mirror surface. Press knob (B) left/right to extend or retract the mirror's arm.

Switch (C) is for switching the mirror heater on and off. Switch (D) is for switching the rear-window heater on and off.
