Fan and Air Louvers (Tractors without ClimaTrak System)

LX1036229-UN-04OCT05

LX1036230-UN-03JUN05

LX007940-UN-15AUG94

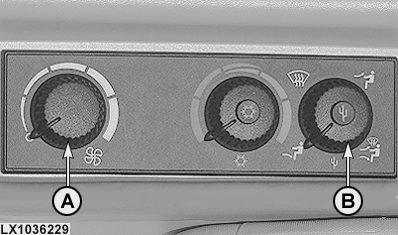

A - Fan switch

B - Switch for selecting direction of airflow

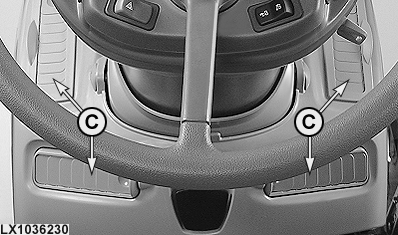

C - Louvers

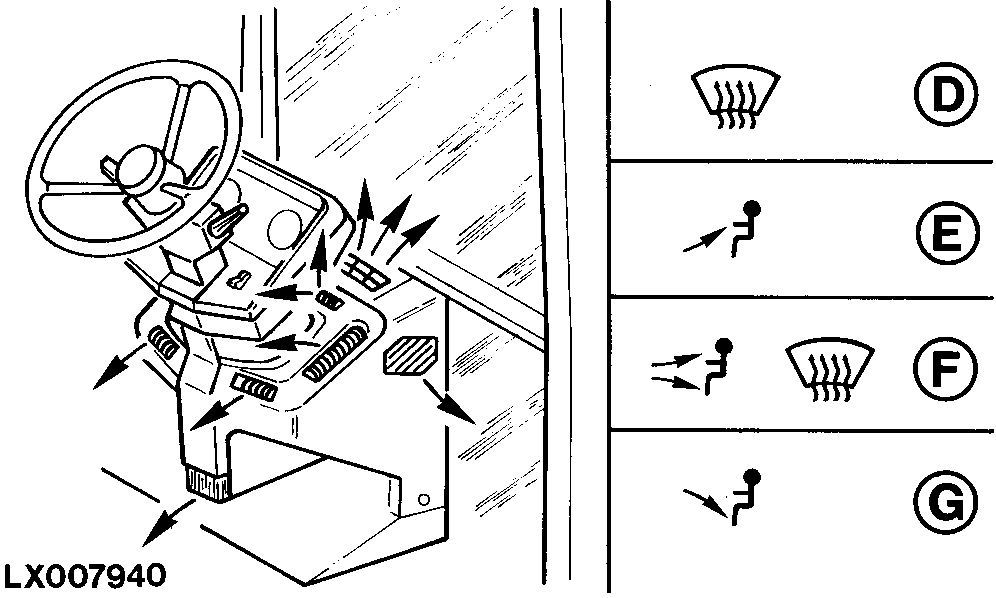

D - Airflow to windshield

E - Airflow to operator

F - Airflow to windows, operator and footwell

G - Airflow to footwell

Fan switch (A) controls the fan speed. The direction of airflow can be altered by means of switch (B).

De-icing or defogging the windshield

Set the heater to maximum heat. Set switch (B) to defog symbol (D) and turn switch (A) (fan) to its maximum.

If the airflow is to be directed at the operator, set switch (B) to symbol (E). Turn on the fan at switch (A). The direction and force of the airflow can be further adjusted at louvers (C).

If the airflow is to be directed evenly around the cab, set switch (B) to symbol (F). Turn on the fan at switch (A).

If the airflow is to be directed into the footwell, set switch (B) to symbol (G). Turn on the fan at switch (A).
