Depth Adjustment

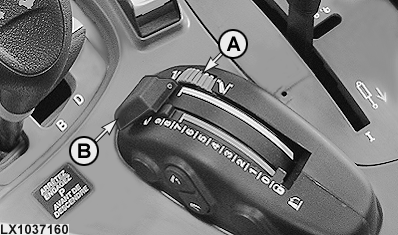

LX1037160-UN-28SEP05

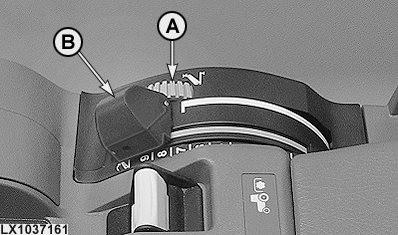

LX1037161-UN-28SEP05

A - Hitch control stop

B - Hitch control lever

Push down hitch control stop (A) and set the desired working depth.

After lifting the implement, the same working depth will be selected the next time the implement is lowered. This depth is indicated by resistance at hitch control lever (B).
