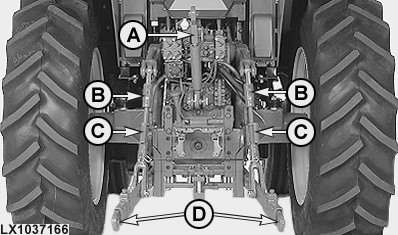

Three-Point Hitch

LX1037166-UN-28SEP05

A - Center link

B - Lift links

C - Crank for adjusting lift links

D - Draft links

Tractors may be equipped with telescopic draft links or quick-coupling (hook-type) draft links.
