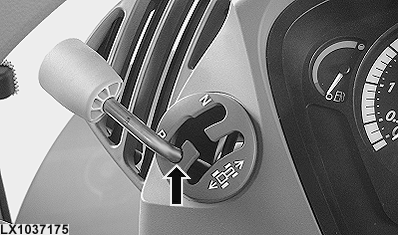

Parking the Tractor (Tractors with IVT)

LX1037175-UN-06JUN06

IMPORTANT: Engage park lock only when the tractor is stationary.

Engage park lock when parked or operating the tractor from a stationary position.

NOTE: In extremely cold temperatures, it may take up to 20 seconds for the park lock to engage.

When engaging park lock on bumpy terrain, remember to actuate the brake pedals as well.

An acoustic alarm warns the operator if he vacates his seat with the park lock not engaged.
