Installing Weights on Flanged Axle

LX1031685-UN-03APR03

LX1031686-UN-03APR03

A - Screws of first weight

B - Retainer jaws

C - Screws of further weights

CAUTION: When installing and removing quick-catch weights, always position wheels so that retainer jaws are at the top. This prevents weights from falling when cap screw is removed.

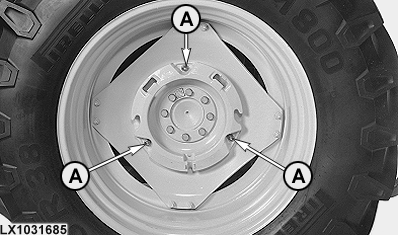

Attach first weight to wheel disk using three cap screws (A).

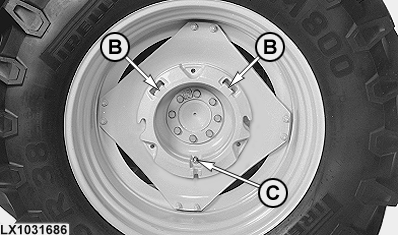

When installing further weights, position wheel so that retainer jaws (B) are at the top. Hang weight in retainer jaws and secure with a cap screw (C) at the bottom.
