Levers for Electronic Selective Control Valves

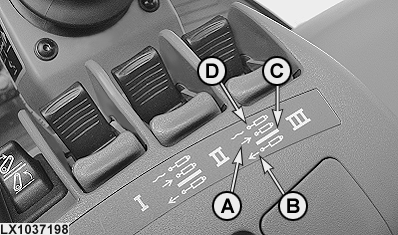

LX1037198-UN-13OCT05

A - Retract

B - Extend

C - Neutral position (between "retract" and "extend")

D - Float position

The control lever has four settings.

The remote cylinder retracts when the lever is moved to the ”Retract” position.
The remote cylinder extends when the lever is moved to the ”Extend” position.
The remote cylinder is held in place when the lever is in ”Neutral”.
When the lever is in the ”Float” position (i.e. piston moves freely inside remote cylinder), the mounted implement follows the ground contours. To obtain this position, move the lever as far as it will go in ”retract”, press it downward and then press it further to the front.

NOTE: If additional external valves are used, move the control lever to neutral when shutting off each hydraulic function.
