Multi-Function Lever (Electrical)

LX1037210-UN-21OCT05

LX1053321-UN-28OCT11

LX1054600-UN-10OCT11

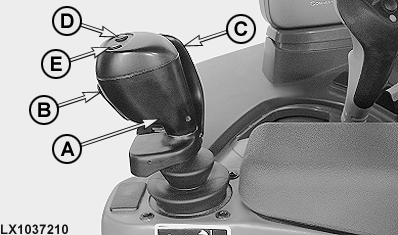

A - Multi-Function Lever

B - Rocker Switch, 3rd Function

C - Interlock Switch Actuator

D - Switch, 4th Function

E - Switch, 5th Function

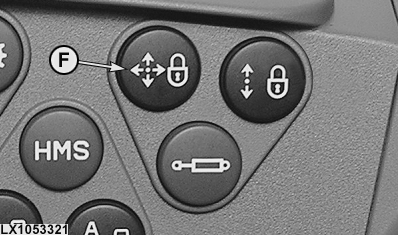

F - Transport Lock Button, Multi-Function Lever

CAUTION: Before operating a front loader, make sure that none of the detent positions have programmed time limits. For this, front-loader operation must be selected. See Additional Functions of the Electronic Selective Control Valves in this Section.

CAUTION: Transport lock button (F) must be activated when driving on roads and whenever the front loader is not required. If this is not done, the front loader may be inadvertently actuated while the tractor is in motion, which could lead to serious accidents.

Multi-function lever (A) permits two SCVs to be operated at the same time. By means of rocker switch (B) an additional SCV can be operated (3rd function).

Switches (D) and (E) allow other functions.

Interlock switch actuator (C) prevents accidental actuation of the multi-function lever. The lever can operate only when the actuator is open (the operator's hand must hold it open). If the loader does not respond after the hand has been placed in the interlock switch actuator, it is possible that the lever was not in the center detent position when the actuator was opened. Move the lever back to the center detent position to activate the system.

If the lever is held in neutral position for longer than 10 minutes, the hydraulic functions are locked out. To overcome this lock-out, take your hand out of the actuator and re-insert hand. In case of malfunctions (e.g. part of system not working or operating error) the system can also be reactivated completely or partly by the procedure above.

Pulling lever (A) back raises the front loader. Pushing the lever forward until resistance is reached lowers the front loader. If the lever is pushed forward beyond the resistance, it engages in a detent and the front loader is in its float position.

Moving the lever to the left makes the loader bucket tip up. Moving the lever to the right until resistance is reached makes the loader bucket dump.

If the lever is moved to the right beyond the resistance and held there, the loader bucket dumps quickly (“quick dump”).

NOTE: In cold weather, there may be brief periods when the loader does not operate. When the temperature drops below -15°C (5°F), the stepper motors for the valves that operate the boom, bucket and grapple become slower and may stop functioning altogether. They automatically go into an internal warm-up mode, which will warm up the stepper motor until they start to function again. These valves are mounted externally and may also be affected by the wind. If the E-ICV control valves have not been in use for a protracted period, or if the tractor has been transported, the stepper motors may need to be warmed up before the loader will function. The warm-up period will vary depending on the weather conditions, but it should not take more than a few minutes.
