Front-Wheel Drive Axle Oil

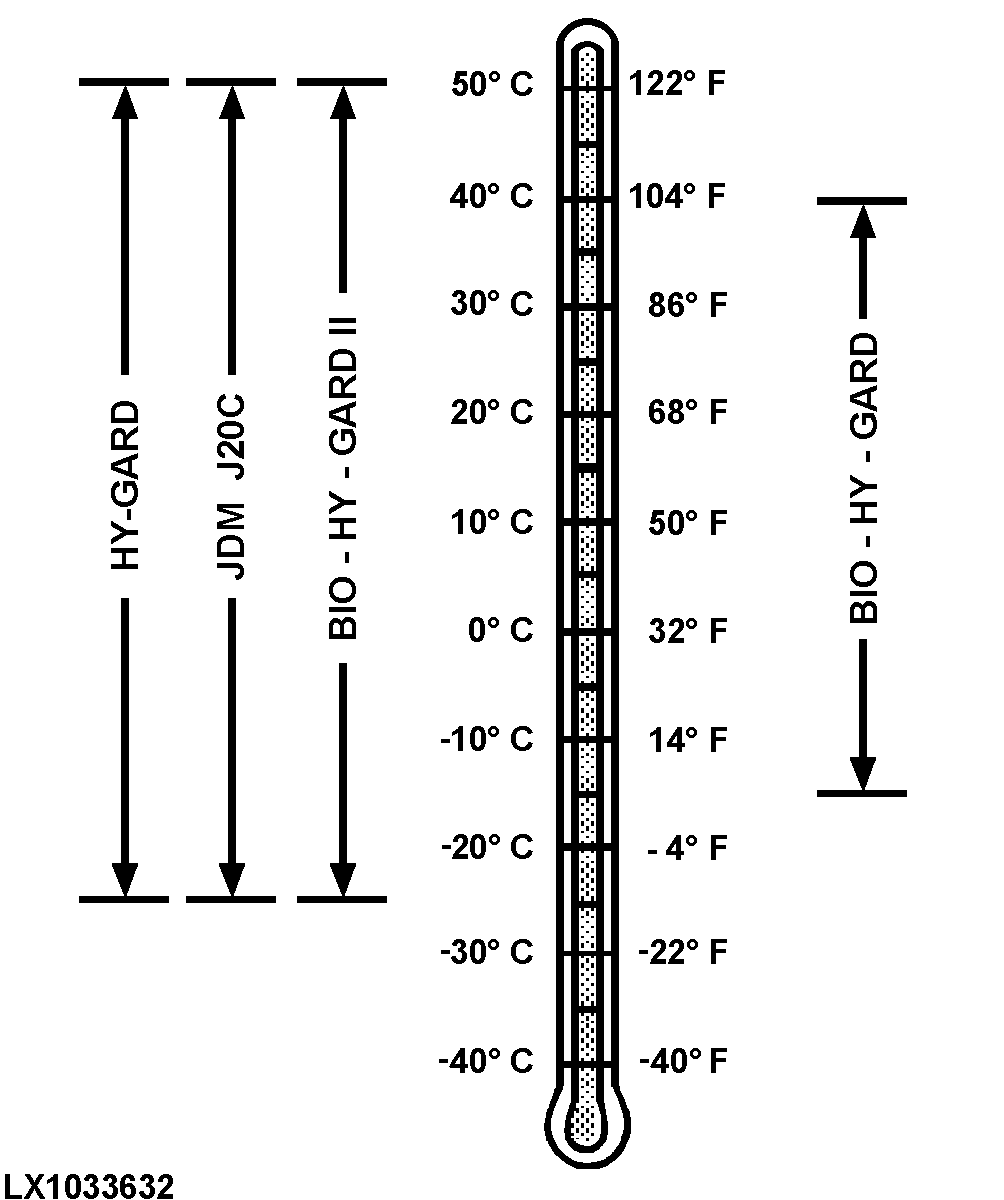

LX1033632-UN-29APR04
Use oil with a viscosity based on the expected air temperature range during the period between oil changes.
The following oil is recommended:
John Deere HY-GARD™
Other oils may be used if they meet the following:
John Deere Standard JDM J20C
Use one of the following oils when a biodegradable fluid is required:
John Deere BIO-HY-GARD II™1 or BIO-HY-GARD™1
|
HY-GARD is a trademark of Deere & Company. BIO-HY-GARD II is a trademark of Deere & Company. BIO-HY-GARD is a trademark of Deere & Company. 1 BIO-HY-GARD II meets or exceeds the minimum biodegradability of 80 % within 21 days according to CEC L-33-A-93 test method. BIO-HY-GARD meets or exceeds the minimum biodegradability of 80 % within 21 days according to CEC L-33-T-82 test method. These oils should not be mixed with mineral oils because this reduces the biodegradability and makes proper oil recycling impossible. |
OU12401,0001313-19-20051013 |
