Engine Air Cleaner

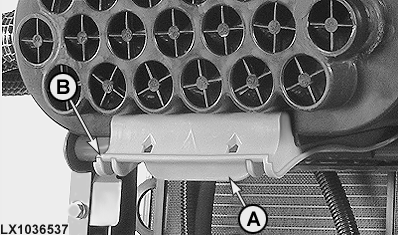

LX1036537-UN-20OCT05

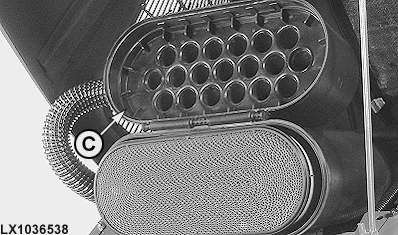

LX1036538-UN-20OCT05

A - Lug

B - Catch

C - Cover

If a message appears at the CommandCenter saying that the engine air cleaner is contaminated, the air cleaner's primary element must be taken out and cleaned.

The service interval may be extended briefly, e.g. until the next suitable opportunity. Provided the cleaner is serviced properly, this will not adversely affect its performance.

The primary element can be cleaned up to five times. Thereafter, or at the latest after 1500 hours of operation (or 2 years), it must be replaced.

Open the hood, pull lug (A) forward and swing catch (B) down. Fold cover (C) up. Pull the primary filter element out of the cleaner housing.

IMPORTANT: Never run the engine without the primary filter element!
