Installation

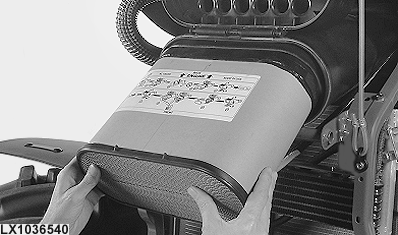

LX1036540-UN-20OCT05

With the rubber seal first (arrows on decal pointing into the filter housing), slide a serviced or new primary filter element as far as it will go into the filter housing. Fold down the cover and let the catch click into place.

IMPORTANT: Never close the hood or start the engine unless the filter is locked securely.
