Clean Radiator and Condenser (if equipped)

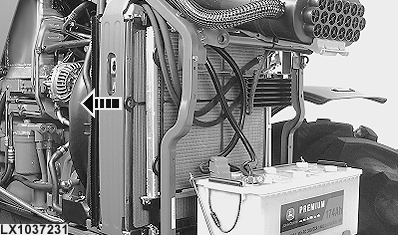

LX1037231-UN-02NOV05

For efficient cooling, the radiator screen must be kept clean.

Pull the screen (if equipped) out to the side. Remove any dirt from radiator and radiator screen.

Replace radiator screen.

NOTE: If the tractor is equipped with an air-conditioning system, pull the condenser of the air-conditioning system out to the side before cleaning the radiator (see description below).

Tractors with Air-Conditioning

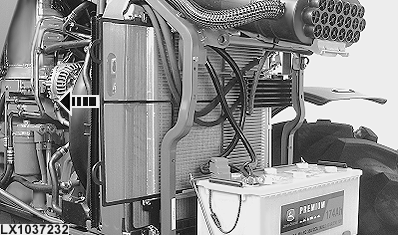

LX1037232-UN-02NOV05

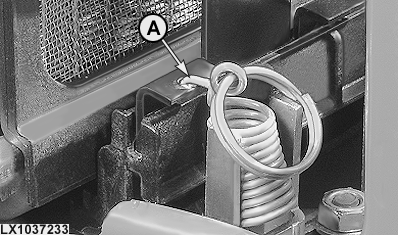

LX1037233-UN-02NOV05

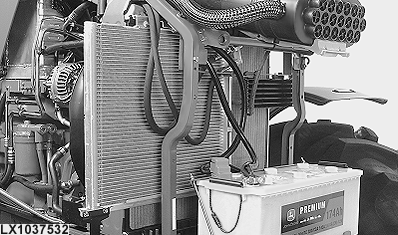

LX1037532-UN-02NOV05

LX1037533-UN-02NOV05

LX1037534-UN-02NOV05

A - Spring

B - Lower guide rail

C - Upper guide rail

For efficient cooling, the exterior of the condenser must be kept clean.

Pull the screen (if equipped) out to the side. Remove any contamination.

Disconnect spring (A) on both tractor sides and pull the condenser out to the side. Remove any contamination.

When re-installing condenser, make sure that it engages properly in the lower and upper guide rails (B and C respectively). Also make sure that the condenser is centered in relation to the radiator. Re-connect springs (A) on both sides.

Replace condenser and radiator screens.
