Manual Park Lock Release (Tractors with IVT)

CAUTION: Perform the manual park lock release procedure only when the tractor needs to be towed and the park lock cannot be released normally.

CAUTION: The reverse drive lever must be in the corner Park position ”P” in order to manually release the park lock.

CAUTION: The tractor must never be operated (even for short test drives) when the park lock is manually released.

CAUTION: The tractor can roll away when the park lock is disengaged. Secure the tractor so that it cannot roll either forwards or backwards.

CAUTION: After towing, the manual park lock release cable must be reconnected.

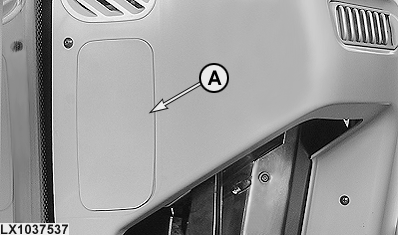

  1. LX1037537
    LX1037537-UN-02NOV05

    Remove cover (A).

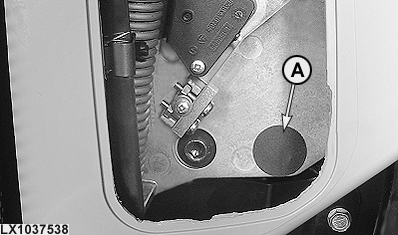

  2. LX1037538
    LX1037538-UN-02NOV05

    Take plug (A) out of the threaded bore.

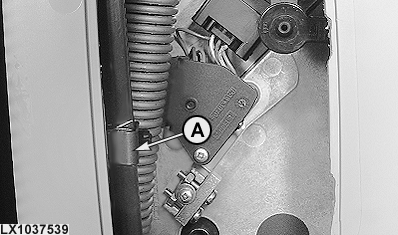

  3. LX1037539
    LX1037539-UN-02NOV05

    Disconnect the bowden cable from clamp (A).

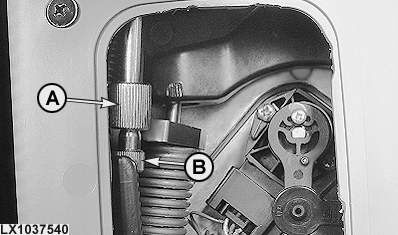

  4. LX1037540
    LX1037540-UN-02NOV05

    Unscrew threaded stud (A) and knurled nut (B).

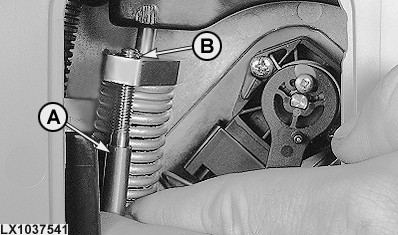

  5. LX1037541
    LX1037541-UN-02NOV05

    Slightly depress the clutch pedal.


  6. Thread the bowden cable (A) through the eye (B) on the clutch pedal or adapter.

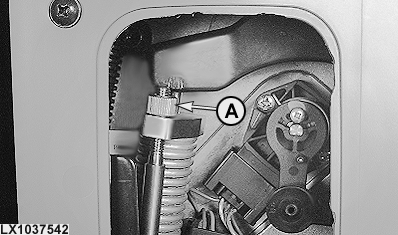

  7. LX1037542
    LX1037542-UN-02NOV05

    Adjust cable with knurled nut (A) until all slack is removed. Knurled section must be uppermost.

    IMPORTANT: The cable must be tight in order to assure complete release of the park lock.

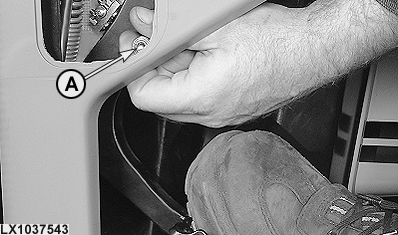

  8. LX1037543
    LX1037543-UN-02NOV05

    Fully depress clutch pedal.

    IMPORTANT: If the clutch pedal cannot be depressed to the stop and the threaded stud cannot be adjusted further, unscrew the knurled nut until the clutch pedal can be depressed against its stop.


  9. Screw threaded stud (A) into the opening in order to secure the clutch in this position and maintain the park lock in the released position.

OU12401,0001350-19-20051021
