How to Access Information
LX1037587-UN-06NOV06
LX1037605-UN-21MAR06
LX1037606-UN-21MAR06

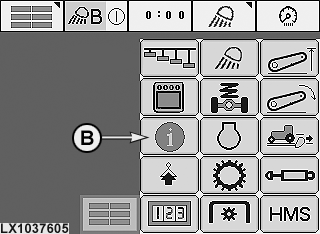

A - Main menu key
B - Information display cell
Press the main menu key (A) and select the information display
cell (B) on the screen.

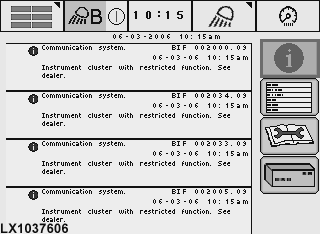

All the warning messages appear on the following screen.
LX1037607-UN-21MAR06

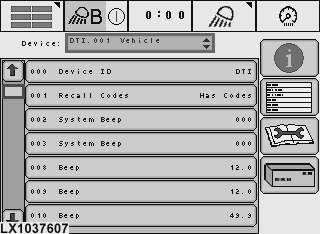

The desired control unit may be selected on the diagnostic address screen, where any ”customization”
that is desired may be done.
LX1037608-UN-21MAR06

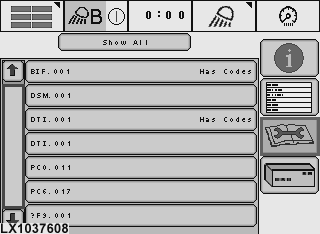

A list of control units appears and control units with diagnostic
trouble codes are displayed on the diagnostic trouble
code screen. This information can be forwarded to the John
Deere dealer to identify problems with the machine.
LX1037609-UN-21MAR06

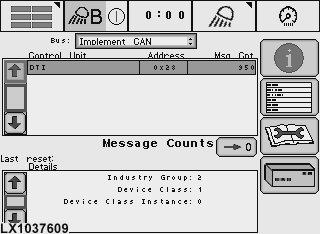

The control units that exchange data via CAN Bus are displayed
on the Control Unit screen. A counter displays
the number of messages of the relevant control unit.
|
|
