Multi-Function Lever (Mechanical)

LX1037620-UN-29JUN06

LX1037209-UN-20OCT05

LX1054600-UN-10OCT11

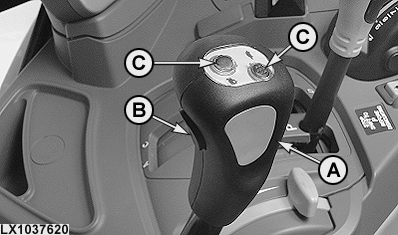

A - Multi-Function Lever

B - Button for 3rd Function

C - Gear Shift Buttons

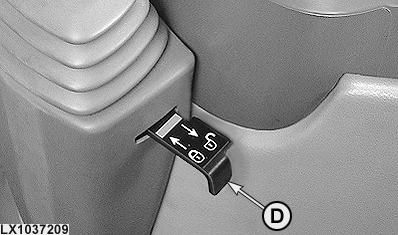

D - Transport Lock Slide Control

Multi-function lever (A) permits two SCVs to be operated at the same time. Button (B) enables other functions to be carried out.

Gear shift buttons (C) allow the gears at the transmission to be shifted. Slide control (D) locks the lever.

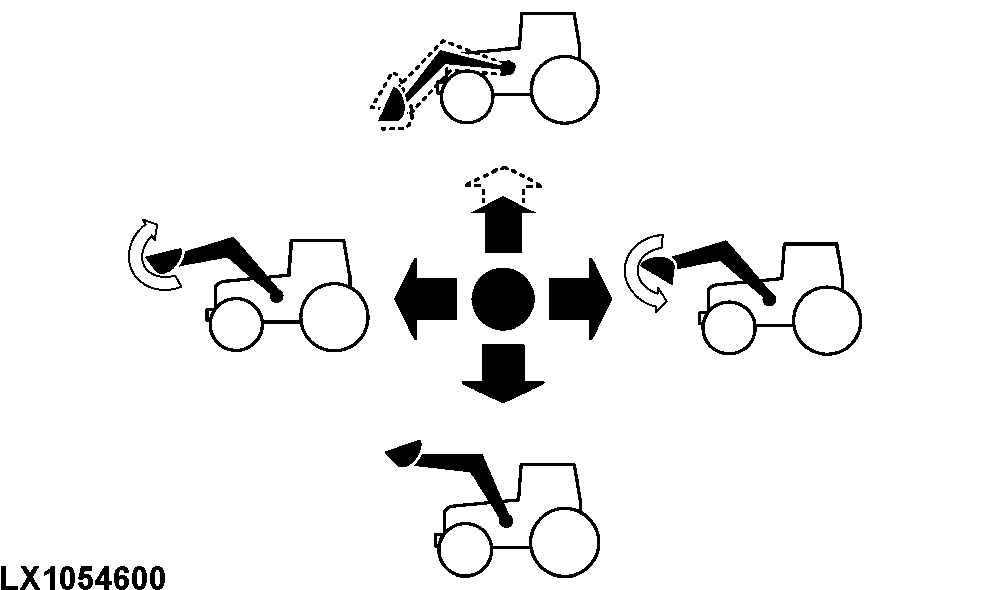

Pulling lever (A) back raises the front loader. Pushing the lever forward until resistance is reached lowers the front loader. If the lever is pushed forward beyond the resistance, it engages in a detent and the front loader is in its float position.

Moving the lever to the left makes the loader bucket tip up. Moving the lever to the right makes the loader bucket dump.

CAUTION: The multi-function lever must be locked when driving on roads and whenever the front loader is not required. Move the multi-function lever to neutral position and lock it using slide control (D). Make sure that the multi-function lever can no longer move. Otherwise, the front loader may be inadvertently actuated while the tractor is in motion, which could lead to serious accidents.
