Quick-Coupling (Hook-Type) Center Link

LX1033643-UN-17MAY04

This center link is intended for Category II and Category III implement balls.

IMPORTANT: The ball must be the correct size.

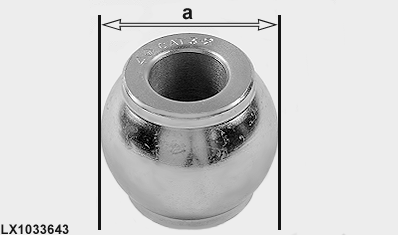

Hitch Category	Ball diameter (a)
II	50 mm 2.0 in.)
III	60 mm 2.4 in.)

How to use the coupler hook

LX1031601-UN-16SEP04

Coupler hook operated by hand

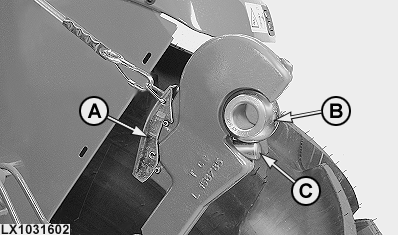

LX1031602-UN-16SEP04

Coupler hook operated by means of a control cable

A - Lever

B - Ball

C - Pin

The coupler is operated by means of lever (A), which can be actuated either by hand or by a control cable.

IMPORTANT: Make certain that the coupler hook is locked:

Lever (A) must be in contact with the coupler hook, there must be no play noticeable at ball (B), and pin (C) must enclose the ball.
