Center Link

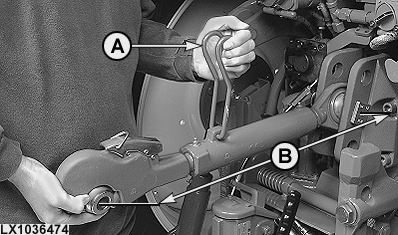

LX1036474-UN-24APR06

A - Adjusting handle

B - Length

Length of center link can be adjusted using adjusting handle (A).

Length (B) must be between 530 mm (20.9 in.) and 725 mm (28.5 in.).

Do not deviate from the specified dimensions. Grooves in the thread indicate the maximum permitted setting. The threads must not be unscrewed any further out of the receiver. After adjusting, push handle down again over center link. Insert attaching pin through implement mast and center link, and secure.
