Checking the Fuel Filter

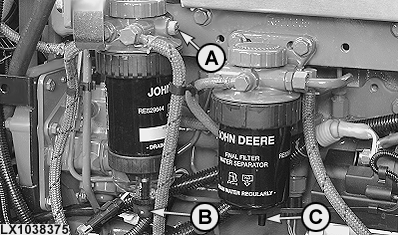

LX1038375-UN-31MAY06

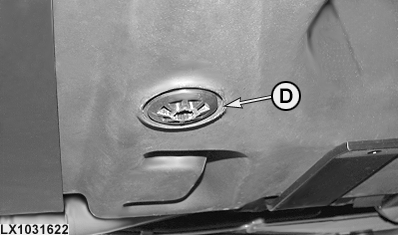

LX1031622-UN-23JAN06

A - Bleed screw

B - Drain plug

C - Drain plug

D - Drain plug (fuel tank)

If water or sediment deposits have settled in filter, proceed as follows:

1. Open bleed screw (A).

2. Open drain plug (B) by 3/4 of a turn. Retighten the plug as soon as water and sediment deposits have drained out.

3. Open drain plug (C) by 3/4 of a turn. Retighten the plug as soon as water and sediment deposits have drained out.

4. Tighten bleed screw (A).

5. Turn key in main switch to the right to the first switch position so that the fuel transfer pump is operating. Keep the pump running for approx. 40 seconds.

If water was present in fuel filter, use a 1/2-inch square-section key to loosen drain plug (D) under the fuel tank by one turn. After draining off any water and sediment deposits, retighten drain plug until hand-tight.
