Bleeding Air from the Fuel System

LX1041033-UN-09JUN06

CAUTION: High-pressure fluid remaining in fuel lines can cause serious injury. Do not disconnect or attempt to repair fuel lines, sensors or any other components between injection pump and nozzles.

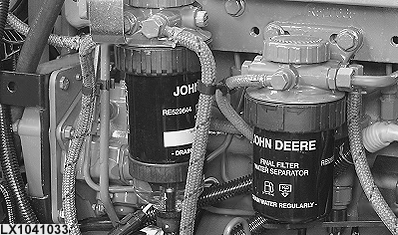

The fuel system must be bled whenever the fuel tank has been run dry or the fuel filters have been replaced.

Turn key in main switch to the right to the first switch position so that the fuel transfer pump is operating. Keep the pump running for approx. 40 seconds.
