Float Position

LX1037164-UN-28SEP05

LX1026121-UN-10MAY01

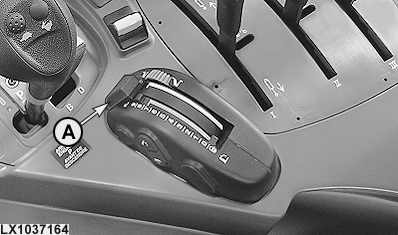

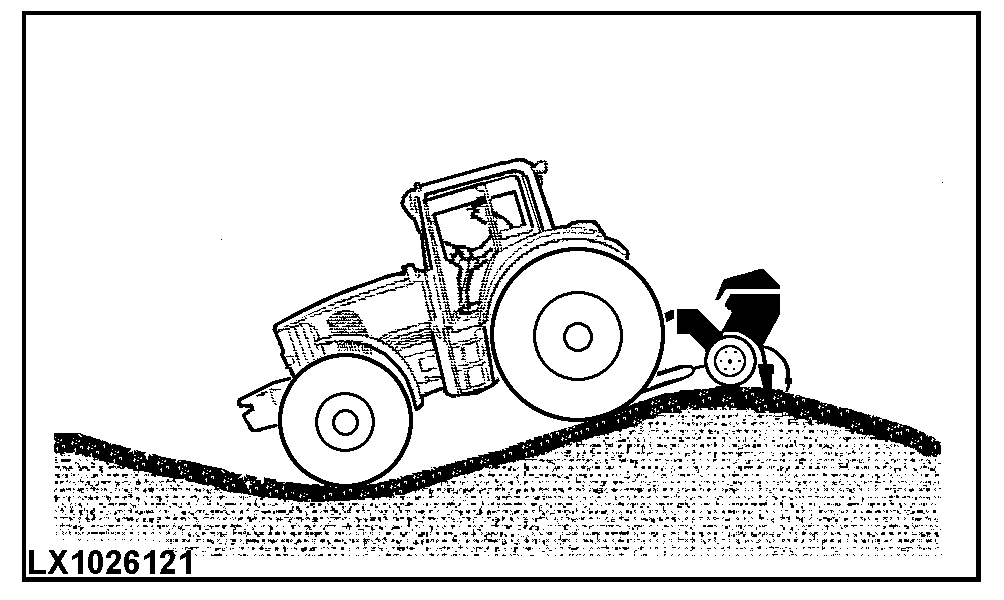

In float position (for implements with gauge wheel), implement can move freely up and down to follow ground contours independently of the tractor. To obtain a "floating" action, set load/depth to ”0” and move hitch control lever (A) as far as it will go to the front.
