Installing Front Weights

RXA0074569
RXA0074569-UN-22APR04

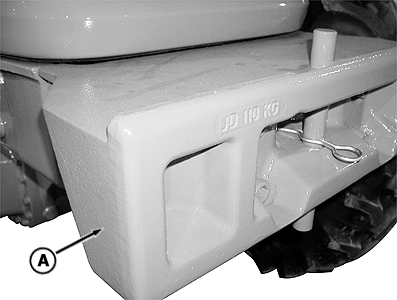

A - Basic weight

One basic weight (A) and up to 14 front weights may be installed. The basic weight weighs 110 kg (243 lb). Each additional weight weighs 47 kg (104 lb).

The additional weights must be installed in pairs, one on either side of the central pin.

RXA0074571
RXA0074571-UN-22APR04

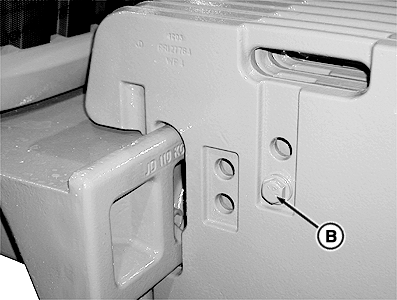

B - Attaching screw

To install up to 6 additional weights, install one attaching screw of suitable length on either side, and secure it with a nut. Tighten the nuts to 230 Nm (170 lb-ft).

RXA0074573
RXA0074573-UN-22APR04

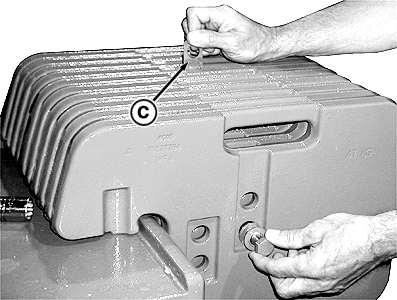

C - Retainer

To install more than 6 weights, install retainers (C) between the weights. Install one retainer with the threaded bore uppermost and one retainer with the threaded bore at the bottom. Tighten the screws to 230 Nm (170 lb-ft).

OU12401,000146E-19-20060620
