Front-Wheel Tread Adjustment

LX000390-UN-05APR00

Block up front end of tractor. Do not place jack under engine oil pan!

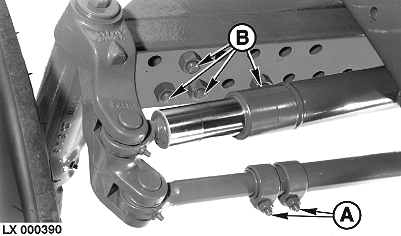

Remove tie-rod clamp bolts (A) and axle bolts (B). Reposition axle ends to the desired front wheel tread. Re-insert axle bolts and tighten to 400 Nm (295 lb-ft).

Adjust tie-rods to front-wheel tread, re-insert clamp bolts and tighten to 50 Nm (35 lb-ft).
