Positions of Rims and Wheel Disks with Rack-and-Pinion Axle

LX009838-UN-03JAN95

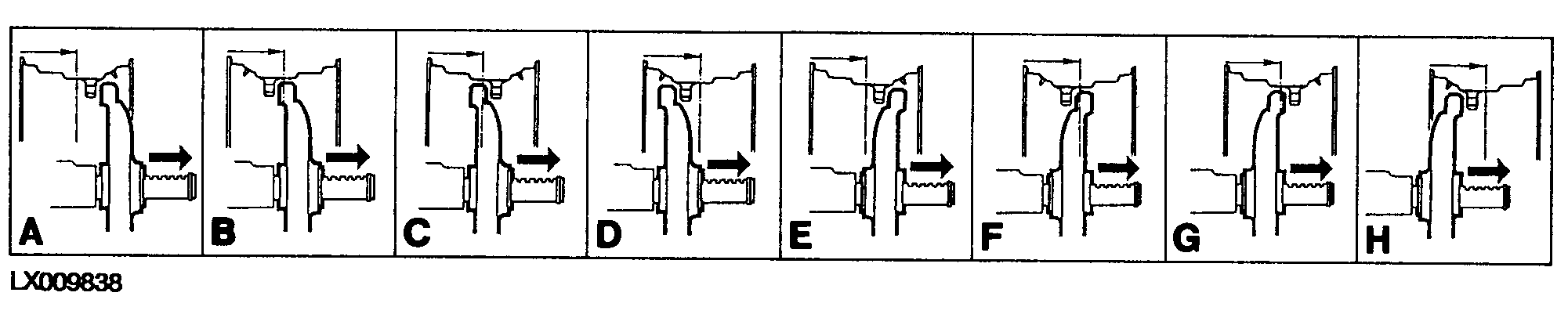

30 in. and 38 in. cast wheels

LX009839-UN-03JAN95

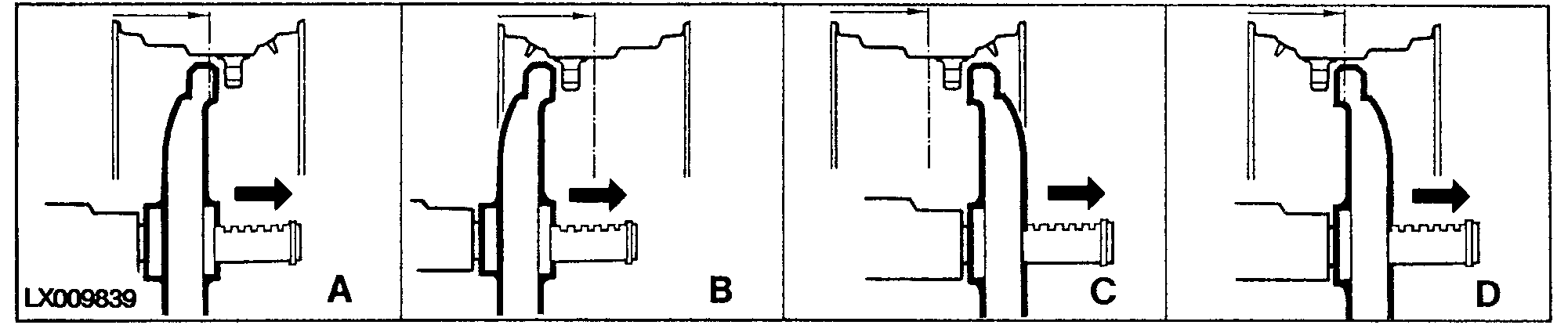

34 in. cast wheels

LX008635-UN-16AUG94

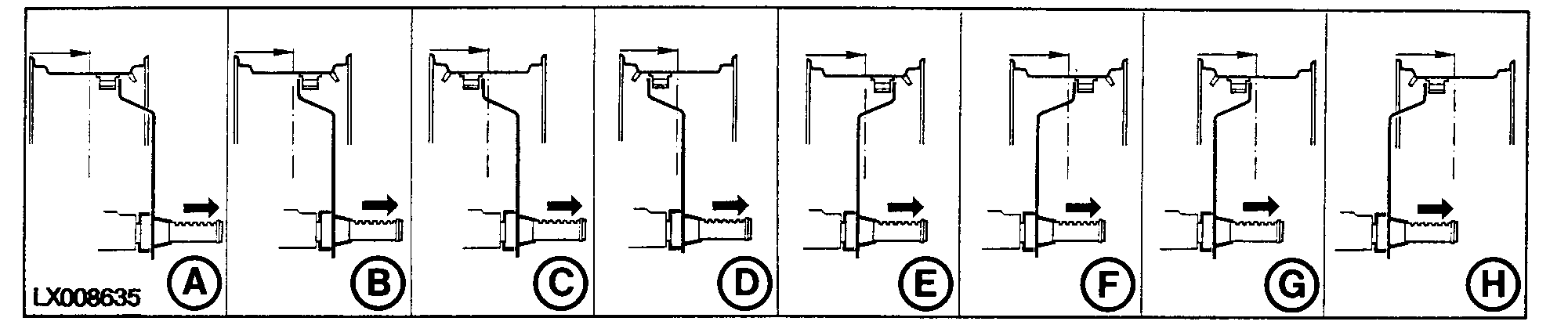

Steel wheels

NOTE: Use the drawings to determine the appropriate position of rims and wheel disks. Positions vary depending on type used.

Only positions A, B, G and H are possible with 30 in. wheels.
