Tread Widths, Rack-and-Pinion Axle
|
Wheels |
Tires |
Position |
Tread widths |
Position |
Tread widths |
|---|---|---|---|---|---|
|
Cast wheels (8-position) |
16.9-38 |
A |
1563-1736 mm (61.5-68.3 in.) |
E |
1624-2010 mm (63.9-79.1 in.) |
|
B |
1563-1940 mm (61.5-76.4 in.) |
F |
1828-2214 mm (72.0-87.2 in.) |
||
|
C |
1563-1936 mm (61.5-76.2 in.) |
G |
1824-2210 mm (71.8-87.0 in.) |
||
|
D |
1710-2140 mm (67.3-84.3 in.) |
H |
2028-2414 mm (79.8-95.0 in.) |
||
|
18.4-38 |
A |
1563-1736 mm (61.5-68.3 in.) |
E |
1624-2010 mm (63.9-79.1 in.) |
|
|
B |
1563-1940 mm (61.5-76.4 in.) |
F |
1828-2214 mm (72.0-87.2 in.) |
||
|
C |
1563-1936 mm (61.5-76.2 in.) |
G |
1824-2210 mm (71.8-87.0 in.) |
||
|
D |
1710-2140 mm (67.3-84.3 in.) |
H |
2028-2414 mm (79.8-95.0 in.) |
||
|
Cast wheels (4-position) |
16.9-30 |
A |
1563-1734 mm (61.5-68.3 in.) |
G |
1826-2212 mm (71.9-87.1 in.) |
|
B |
1563-1938 mm (61.5-76.3 in.) |
H |
2030-2416 mm (79.9-95.1 in.) |
||
|
18.4-30 |
A |
1604-1734 mm (63.1-68.3 in.) |
G |
1826-2212 mm (71.9-87.1 in.) |
|
|
B |
1604-1938 mm (63.1-76.3 in.) |
H |
2030-2416 mm (79.9-95.1 in.) |
||
|
16.9-34 |
A |
1668-2098 mm (65.7-82.6 in.) |
C |
1563-1848 mm (61.5-72.8 in.) |
|
|
B |
1872-2302 mm (73.7-90.6 in.) |
D |
1666-2052 mm (65.6-80.8 in.) |
||
|
18.4-34 |
A |
1668-2098 mm (65.7-82.6 in.) |
C |
1604-1848 mm (63.1-82.3 in.) |
|
|
B |
1872-2302 mm (73.7-90.6 in.) |
D |
1666-2052 mm (65.6-80.8 in.) |
||
|
Steel wheels |
12.4-421 |
A |
1440-1732 mm (56.7-68.2 in.) |
E |
1692-2132 mm (66.6-83.9 in.) |
|
B |
1440-1836 mm (56.7-72.3 in.) |
F |
1796-2236 mm (70.7-88.0 in.) |
||
|
C |
1472-1912 mm (58.0-75.3 in.) |
G |
1872-2312 mm (73.7-91.0 in.) |
||
|
D |
1576-2016 mm (62.0-79.4 in.) |
H |
1976-2416 mm (77.8-95.1 in.) |
||
|
13.6-461 |
A |
1473-1752 mm (58.0-69.0 in.) |
E |
1712-2152 mm (67.4-84.7 in.) |
|
|
B |
1473-1856 mm (58.0-73.1 in.) |
F |
1816-2256 mm (71.5-88.8 in.) |
||
|
C |
1492-1932 mm (58.7-76.1 in.) |
G |
1852-2292 mm (72.9-90.2 in.) |
||
|
D |
1556-1996 mm (61.3-78.6 in.) |
H |
1956-2396 mm (77.0-94.3 in.) |

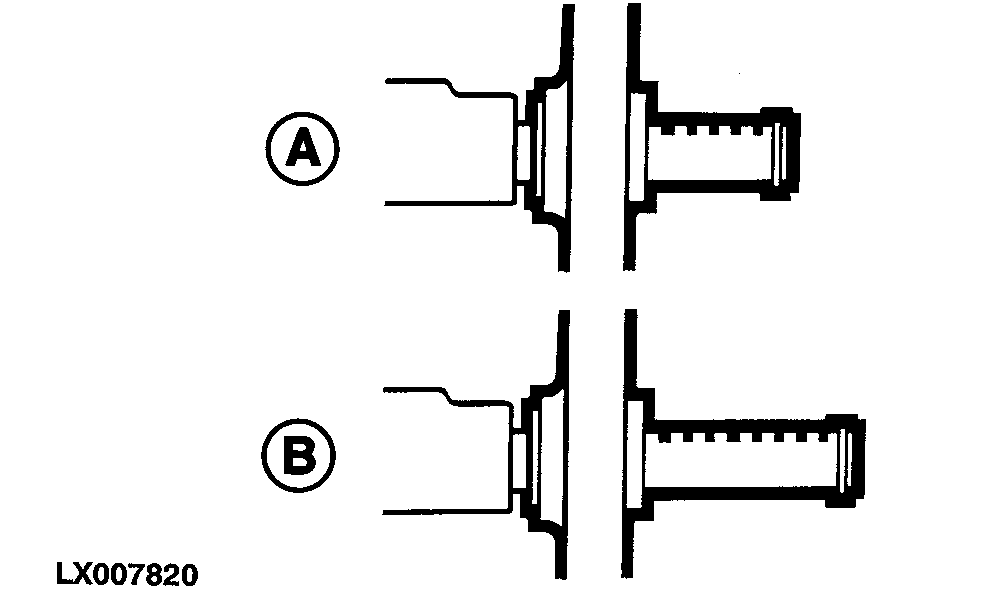

LX007820-UN-15AUG94
A - Short rack-and-pinion axle (29 teeth)
B - Long rack-and-pinion axle (42 teeth)
On the long rack-and-pinion axle, the maximum tread widths quoted above increase by 286 mm (11.3 in.).
|
1 Wheel hub with pinion outside.
By turning wheel hub around to put the pinion inside, it is possible
to increase tread width by 50 mm (2 in.).
|
OU12401,000147D-19-20060622 |
