Lubricating Front Axle and U.J. Shafts (Tractors with Front-Wheel Drive)

LX1038387-UN-08JUN06

Final drive

LX1038388-UN-08JUN06

Suspended axle

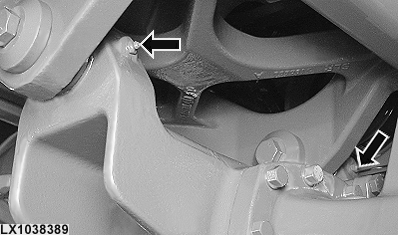

LX1038389-UN-08JUN06

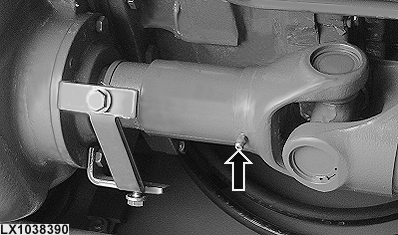

LX1038390-UN-08JUN06

Drive shaft (rear)

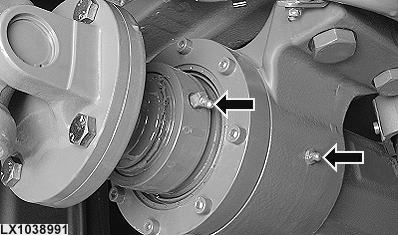

LX1038391-UN-08JUN06

Drive shaft (front)

IMPORTANT: Carry out this service after every ten hours of operation when working under very wet and muddy conditions.

Apply John Deere multi-purpose grease to the grease fittings on the final drives (two on each drive), on the axle bridge (with suspended axle, one fitting on each side of tractor), on the rear drive shaft and the front drive shaft (suspended axle only).

IMPORTANT: Thoroughly clean all grease fittings prior to greasing. Replace damaged grease fittings immediately.
