Back-Up Alarm (Optional Equipment)

LX1037587-UN-06NOV06

LX1041077-UN-11OCT06

LX1041080-UN-11OCT06

A - Main menu key

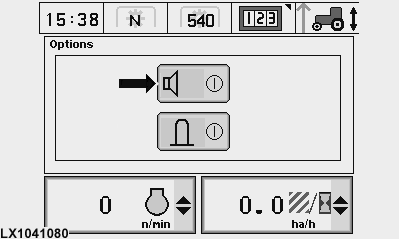

B - Option screen

If the tractor is equipped with this option and it is activated at the CommandCenter, an alarm signal is triggered whenever the reverser lever is set to reverse travel position.

Press the main menu key (A) and then select the “Option” screen (B).
