Adjusting Rate of Implement Drop

LX1038303-UN-06NOV06

LX1041102-UN-06NOV06

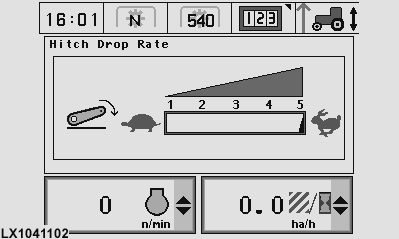

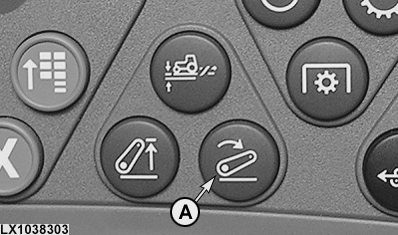

Button (A) is used to select this screen. There, you can set the rate at which mounted implements will drop.

The rate-of-drop varies with this setting and the weight of the mounted implement. The heavier the implement, the faster the rate-of-drop and the lighter the implement, the slower the rate-of-drop.
