Super Comfort Seat

LX1017693-UN-24OCT97

LX1018215-UN-24OCT97

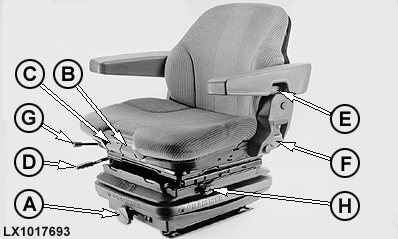

A - Crank for adjusting operator's weight

B - Lever for seat tilt¹

C - Lever for adjusting the cushion position¹

D - Fore-and-aft

E - Armrest tilt

F - Backrest tilt

G - Lever for swivel¹

H - Lever for fore/aft spring¹

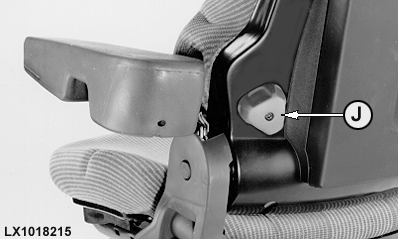

J - Lumbar support

To adjust the seat upward, raise it until it clicks into place (3 detent positions). To adjust downward, raise the seat to the stop position then lower it.

IMPORTANT: Shut off engine before swivelling the seat. Accidental contact with the controls could cause the tractor or implement to operate.

When driving on public roads, lock the seat in straight-ahead position.

If the seat is equipped with a swivel (optional equipment), this is operated by means of lever (G) as follows:

Lift the lever up. The seat turns 200° to the left and 20° to the right. The seat locks at 10° intervals.

As a further option, the seat may be equipped with the same type of swivel described at "Air Comfort Seat".

To lower the armrest through 30°, press the armrest tilt adjuster (E) into the armrest.
