Seven-Terminal Trailer Socket

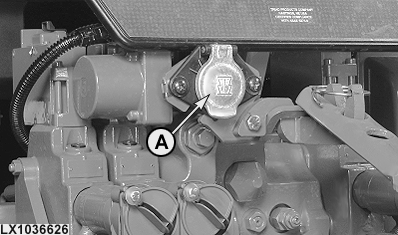

LX1036626-UN-22AUG05

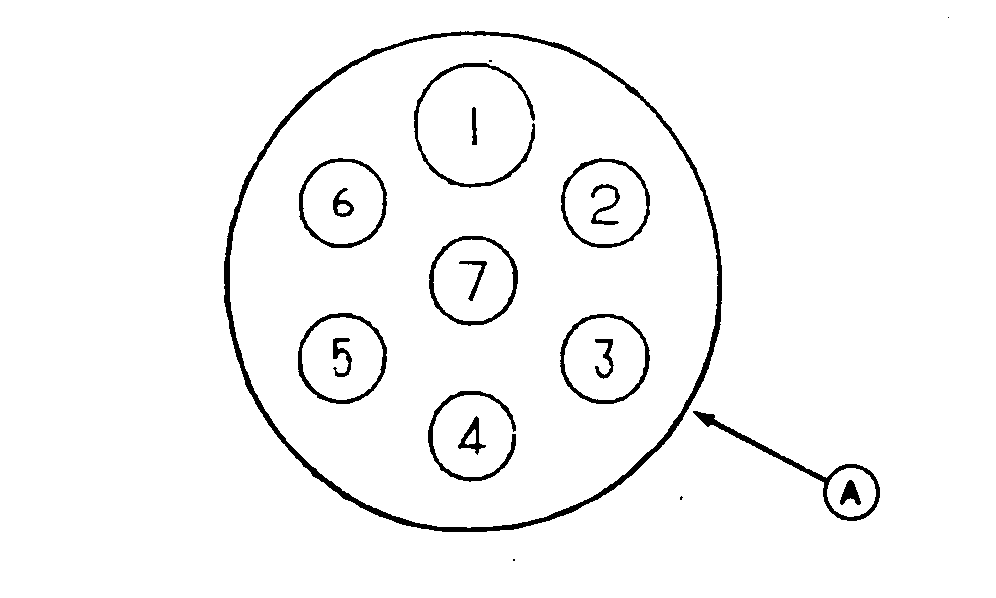

RW21249-UN-17JUN92

Socket (A) allows lights, turn signals and other electrical equipment on a trailer or implement to be connected. Always use additional lighting on a mounted implement if this conceals the turn signals and other lights at the rear of the tractor.

NOTE: Suitable plugs can be obtained from your John Deere dealer.

Connection	Function	Color of wire
1	Ground	White
2	—	—
3	L.h. turn signal	Yellow
4	Brake light	Light blue
5	R.h. turn signal	Dark green
6	Tail lights	Brown
7	Accessories	Light blue
