Telescopic Draft Links

LX1019661
LX1019661-UN-17SEP99

Telescopic Draft Links

These draft links are intended for Category II and Category IIIN implements.

To facilitate hitching of implements, extend the draft links to the rear.

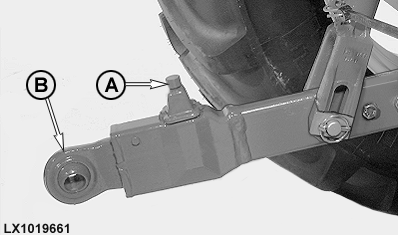

  1. Lift lock pin (A).

  2. Pull telescopic draft links (B) to the rear.

After attaching and securing implements to draft links, reverse the tractor until the lock pins snap into place. Make sure that the draft links are locked by driving a short distance in forward direction.
