Fuses and Relays in the Engine Compartment

LX1037381-UN-20FEB06

IMPORTANT: To prevent damage to the electrical system, never use a fuse with a higher rating than the one already installed.

NOTE: Depending on how the tractor is equipped, it may not have all the fuses and relays shown below.

The fuse and relay box is located at the upper right-hand side of the engine compartment.

Open the hood.

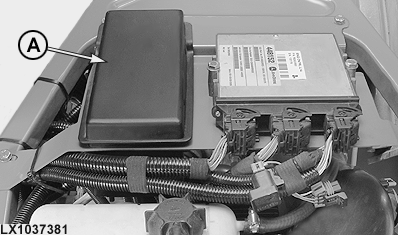

Take cover (A) off the fuse and relay box.
