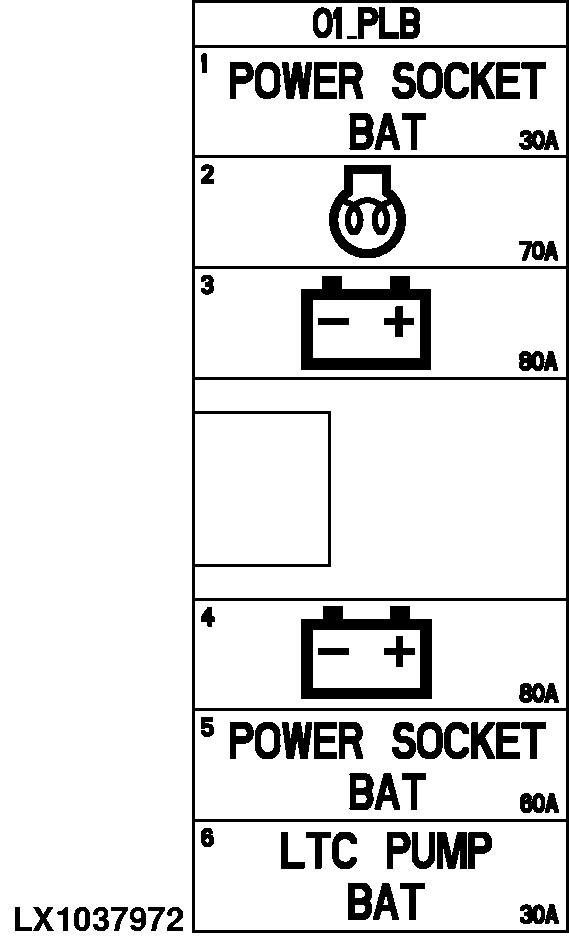

Fuses F01PLB (Engine Compartment)
LX1037972-UN-22AUG06
|
Number |
Capacity (amps) |
Consumer |
|---|---|---|
|
F01PLB/01 |
30 amps |
ISOBUS socket at rear (power supply to implement control units) |
|
F01PLB/02 |
70 amps |
Heating element of electrical starting aid |
|
F01PLB/03 |
80 amps |
Main fuse |
|
F01PLB/04 |
80 amps |
Main fuse |
|
F01PLB/05 |
60 amps |
ISOBUS socket at rear (power supply to components) |
|
F01PLB/06 |
— |
Not used |
|
OU12401,0001563-19-20061117 |
