Fuse on Tractors with a Battery Cut-Off Switch

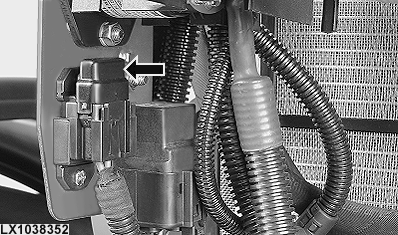

LX1038352-UN-18MAY06
This fuse is located in front of the radiator.
|
Number |
Consumer |
Capacity (amps) |
|---|---|---|
|
F27 |
Unswitched power for radio, CommandCenter and GreenStar Display |
10 amps |
NOTE: Replace blown fuse with a new 10-amp fuse.
|
OU12401,00015DB-19-20100527 |
