Additional Functions for Electronic Control Valves (E-SCVs and E-ICVs)

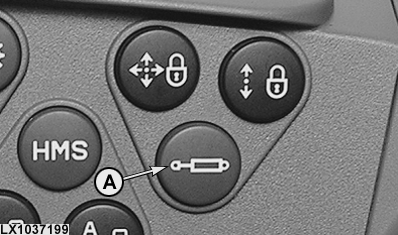

LX1037199-UN-06NOV06

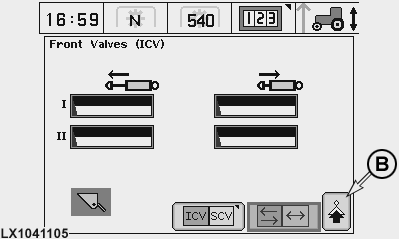

LX1041105-UN-20NOV06

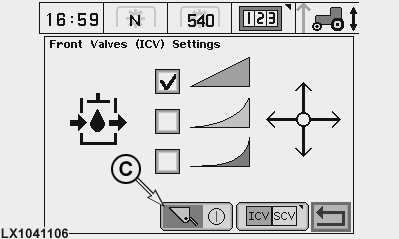

LX1041106-UN-20NOV06

A - Button for Selective Control Valves

B - Next Page

C - Front Loader

IMPORTANT: For E-ICVs, make sure that the correct machine (front loader or front-mounted implement) is set.

Press button (A) for selective control valves and select ICV, then select next page (B) and finally, select or deselect the front loader symbol (C).

Transport lock

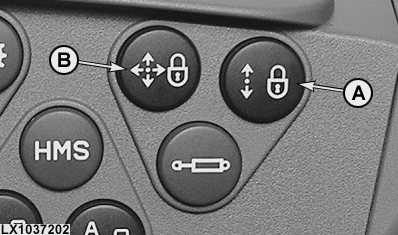

LX1037202-UN-06NOV06

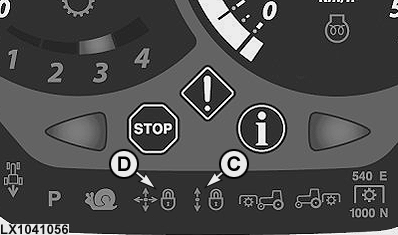

LX1041056-UN-29JUN06

A - Transport Lock Button, Selective Control Valves (E-SCVs)

B - Transport Lock Button, Multi-Function Lever (E-ICVs)

C - Transport Lock Indicator Light, Selective Control Valves (E-SCVs)

D - Transport Lock Indicator Light, Multi-Function Lever (E-ICVs)

All selective control valves (E-SCVs) can be locked at once (transport lock) using button (A). This is indicated by light (C). The selective control valves go to neutral.

All independent control valves (E-ICVs) of the multi-function lever can be locked at once (transport lock) using button (B). This is indicated by light (D). The selective control valves go to neutral.

CAUTION: Transport lock buttons (A) and (B) must be activated when driving on roads and whenever the selective control valves or the front loader are not required. If this is not done, the selective control valves or the front loader may be inadvertently actuated while the tractor is in motion, which could lead to serious accidents.

Adjusting the SCV values

LX1037199-UN-06NOV06

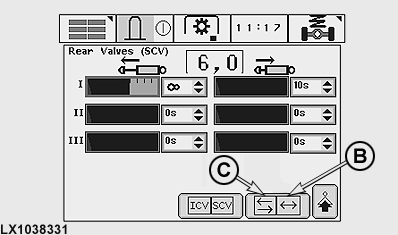

LX1038331-UN-31MAY06

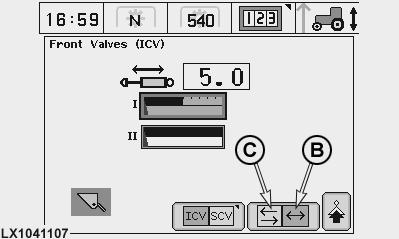

LX1041107-UN-20NOV06

A - Button for Selective Control Valves

B - Joint Adjustment

C - Separate Adjustment

The following values may be adjusted for the E-SCVs and E-ICVs:

• Maximum flow
• Automatic shut-off time

Press button (A) for selective control valves and set the desired values at the following screens using the selector wheel.

The values for maximum flow can be set in increments of 0.1. The minimum is 0.2, and the maximum 10.

The values for the shut-off time can be set in variable increments between 0 and infinity. Infinity means no automatic shut-off.

NOTE: If cell (B) is activated, the set values for maximum flow and automatic shut-off time at each of the SCVs are identical in both directions (extend/retract). If cell (C) is activated, the values for the two directions of movement can be set separately (see illustrations).

Further adjustments

LX1037199-UN-06NOV06

LX1041105-UN-20NOV06

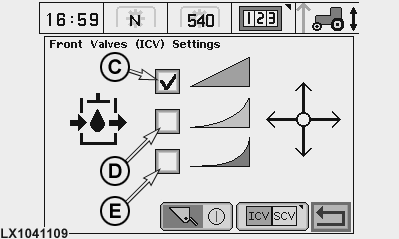

LX1041109-UN-20NOV06

A - Button for Selective Control Valves

B - Next Page

C - Linear

D - Combination

E - Progressive

Press button (A) for selective control valves, then select next page (B).

On this screen, the response characteristics of the SCVs can be adjusted:

• Linear (C) means that the distance travelled by the SCV corresponds to the distance travelled by the control lever / multi-function lever
• Progressive (E) means that initially the distance travelled by the SCV is less than that travelled by the control lever / multi-function lever (giving a more sensitive start to the movement)
• Combination (D) is an intermediate stage between the two settings described above

In addition, you can select whether or not a front loader or front-mounted implement can be operated via the electrical multi-function lever.

IMPORTANT: For E-ICVs, make sure that the correct machine (front loader or front-mounted implement) is set.

Automatic shut-off

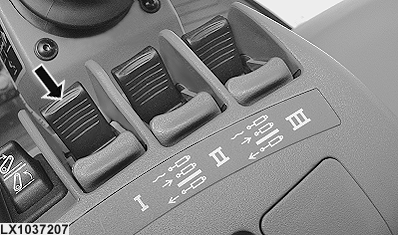

LX1037207-UN-13OCT05

Provided the transport lock is not active and a shut-off time greater than zero is set for the SCV, the following applies:

If the SCV control lever (see arrow) is in the maximum extend or retract position and then moved past the point of resistance (a definite click can be perceived), the relevant SCV will be brought to its maximum flow position and held there until the set shut-off time elapses. Then the control valve is moved to its neutral position.

This procedure is aborted if:

• the SCV control lever is not returned to its neutral position within one second
• the SCV control lever is moved out of its neutral position before the shut-off period has elapsed
• the SCV control lever is moved in the opposite direction

In all above-mentioned cases, the SCV will react according to the movements of the SCV control lever.

To re-activate the automatic shut-off, cycle the SCV control lever back from beyond the point of resistance and then past the point of resistance again.
