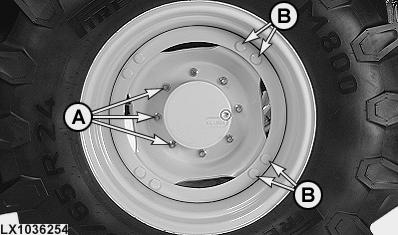

Tighten Wheel Nuts

LX1036254-UN-16AUG05

A - 300 Nm (220 lb-ft)

B - 250 Nm (185 lb-ft)

After adjusting front wheel tread, tighten nuts (A) and (B).

IMPORTANT: After the first 4 and 8 hours of operation, retighten all front wheel attaching nuts. Check tightness of these nuts frequently during the next 100 hours of operation.
