Changing the Fuel Filters

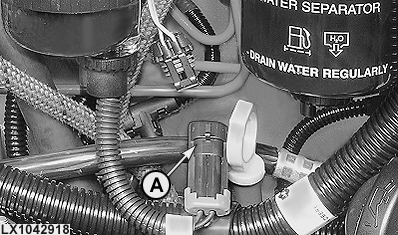

LX1042918
LX1042918-UN-10APR07

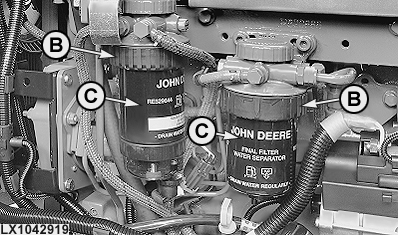

LX1042919
LX1042919-UN-10APR07

A - Cable

B - Retaining ring

C - Filter

Always change the two filters at the same time.

  1. Disconnect cable (A) from the water sensor.

  2. Unfasten filter retaining ring (B) and remove filter (C). Seal old filter with cover of the new one.

  3. Remove water trap and install it on new filter.

  4. Attach new filter. The marks on the filter must be aligned with those on the housing.

  5. Tighten retaining ring (B) until it clicks into place.

  6. Reconnect cable (A).

  7. Turn key in main switch to the right to the first switch position so that the fuel transfer pump is operating. Keep the pump running for approx. 40 seconds.

OU12401,000171D-19-20070402
