HMS, Controls

LX1037561
LX1037561-UN-06NOV06

LX1044403
LX1044403-UN-29NOV07

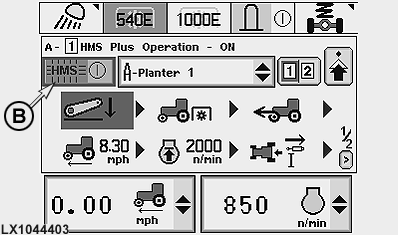

HMS main page

LX1041113
LX1041113-UN-21SEP06

Switch, without CommandArm

LX1041387
LX1041387-UN-21SEP06

Switch, with CommandArm

LX1041399
LX1041399-UN-21SEP06

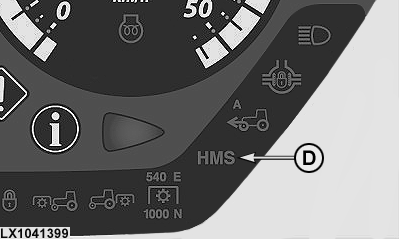

HMS indicator light on dashboard

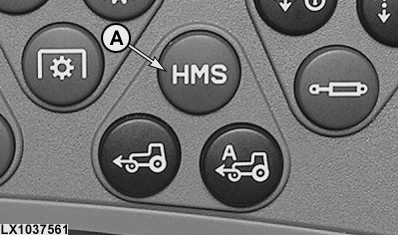

A - Button, HMS main page

B - HMS on/off

C - Program switch

D - HMS indicator light on dashboard

NOTE: On all HMS pages, use the program switch (C) to toggle between the two programs.

OU12401,0001755-19-20071128
