HMS, Programming with Tractor Stationary, Example

LX1044408-UN-29NOV07

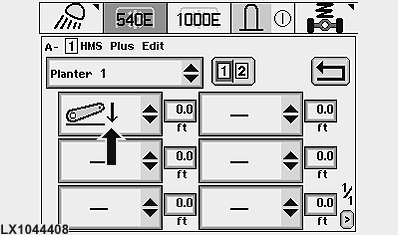

Step 1: Select 1st function

LX1044409-UN-29NOV07

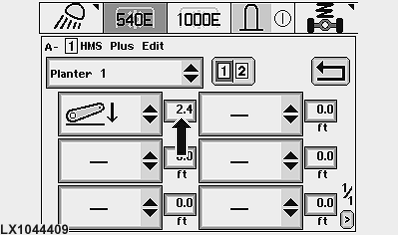

Step 2: Enter distance the tractor moves until the next function is activated

LX1044410-UN-29NOV07

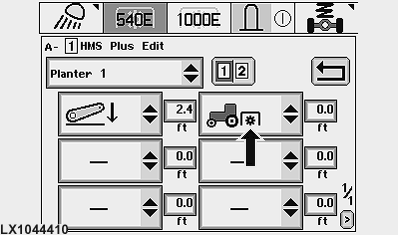

Step 3: Select 2nd function

LX1044411-UN-29NOV07

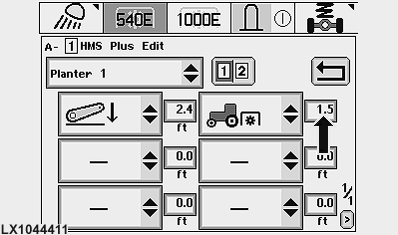

Step 4: Enter distance the tractor moves until the next function is activated

LX1044412-UN-29NOV07

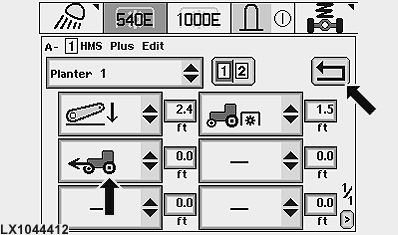

Step 5: Select 3rd function, then save settings

LX1044413-UN-29NOV07

HMS main page
