Drawbar

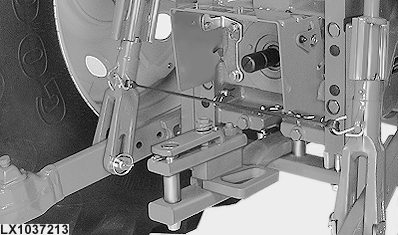

LX1037213-UN-21OCT05

The drawbar is used to pull drawn equipment of all types, particularly PTO-driven implements.

The drawbar hitch point is located so as to increase the rear axle load and at the same time slightly reduce load on the front axle.

Besides having a variable swinging range, the drawbar can also be adjusted lengthwise.

Maximum permissible static vertical loads and towable loads are stated in the “Specifications” section.

NOTE: Drawbar components that are subject to wear have to be checked every 250 hours (see “Service / Every 250 Hours”). Replace if necessary.
