Clean the Cab Air Filters

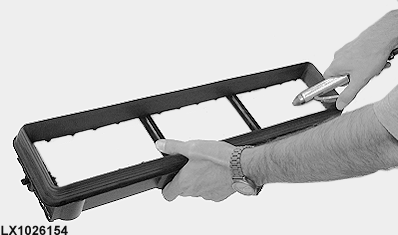

LX1026154-UN-21MAY01

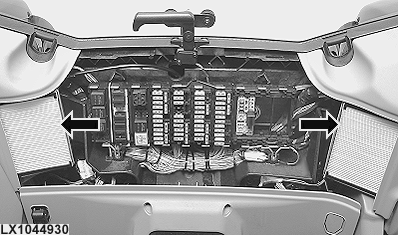

LX1044930-UN-11DEC07

NOTE: On tractors equipped with Ultra-Gard activated carbon filters, the filters cannot be cleaned. These filters must be replaced with new ones every 500 hours or once a year at the latest.

Every time the primary filter is serviced, also remove the two cab air filters and the recirculated air filters, and clean them with compressed air directed from the clean side.

Replace cab air filters together with engine primary air filter element.
