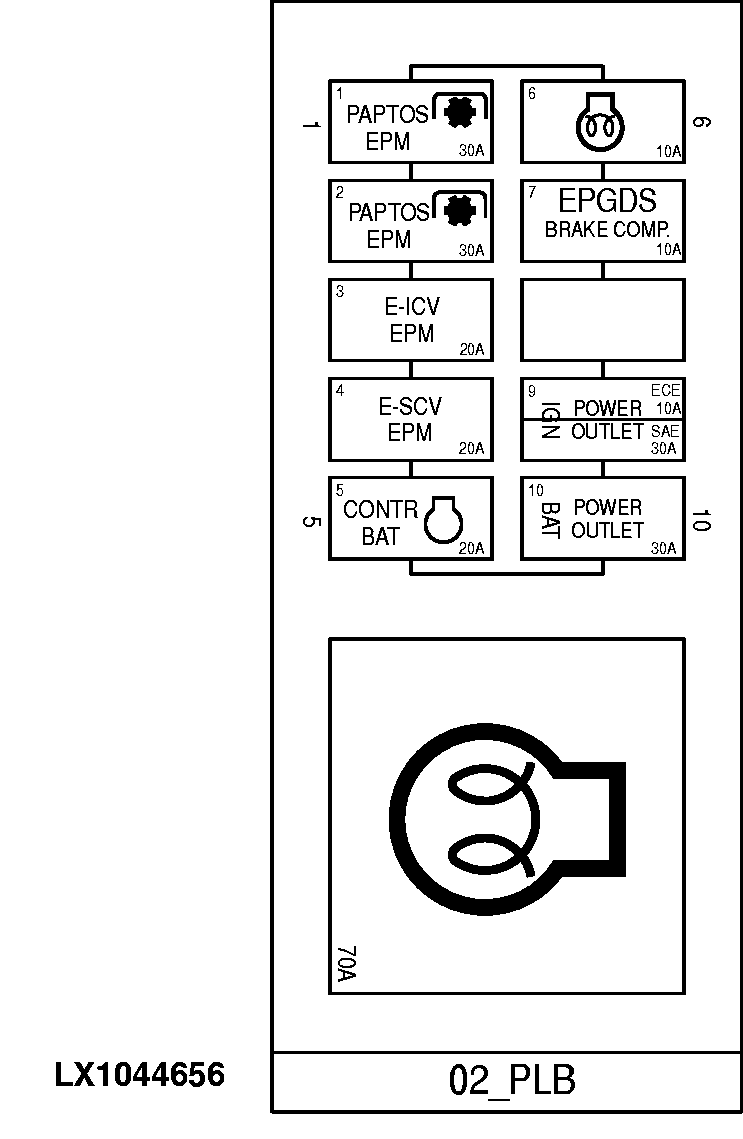

Fuses F02PLB (Engine Compartment)
LX1044656-UN-23NOV07
|
Number |
Capacity (amps) |
Consumer |
|---|---|---|
|
F02PLB/01 |
30 amps |
Magnetic coils for PTO speeds |
|
F02PLB/02 |
30 amps |
Magnetic coils for PTO speeds |
|
F02PLB/03 |
20 amps |
E-ICV stepper motors |
|
F02PLB/04 |
20 amps |
E-SCV stepper motors |
|
F02PLB/05 |
20 amps |
ECU (engine control unit) |
|
F02PLB/06 |
10 amps |
Monitoring of electrical starting aid |
|
F02PLB/07 |
— |
Not used |
|
F02PLB/08 |
— |
Not used |
|
F02PLB/09 |
30 amps |
3-terminal socket, power outlet strip, 7-terminal socket (SAE) |
|
10 amps |
3-terminal socket, socket strip (ECE) |
|
|
F02PLB/10 |
30 amps |
3-terminal socket, socket strip |
|
