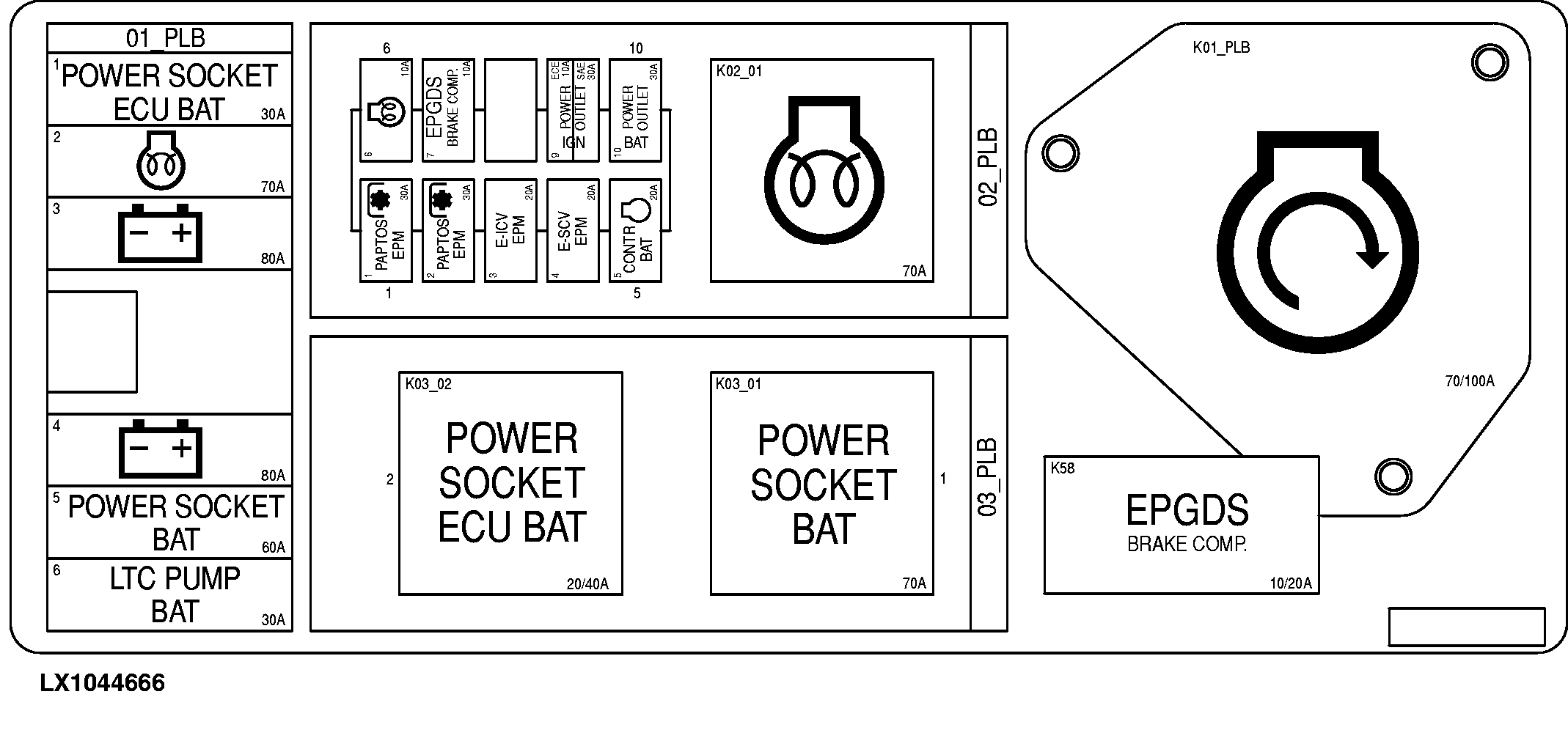

Relays K01PLB to K03PLB (Engine Compartment)

LX1044666-UN-23NOV07

Number	Capacity (amps)	Designation
K01PLB	70/100 amps	Starting motor relay
K02PLB/01	70 amps	Relay for electrical starting aid
K03PLB/01	70 amps	Relay for power supply to ISOBUS socket at rear
K03PLB/02	20/40 amps	Relay for power supply to implement control units (ISOBUS socket) at rear
K58	—	Not used
