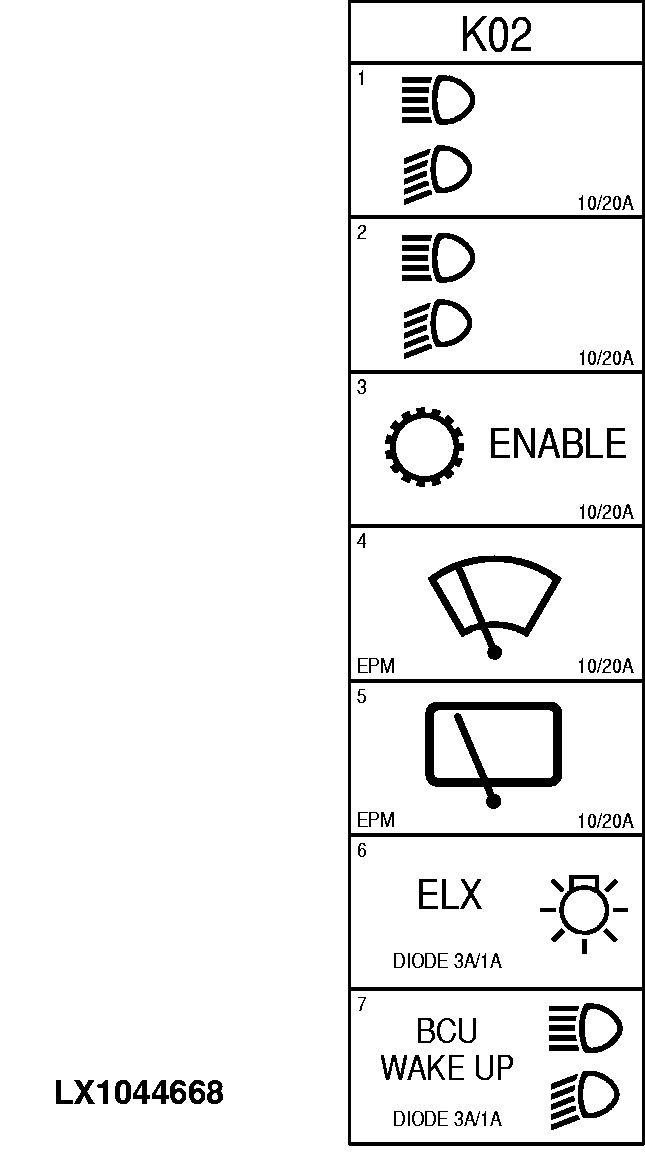

Relays / Diodes K02 (AutoPowr/IVT)
LX1044668-UN-23NOV07
|
Number |
Capacity (amps) |
Designation |
|---|---|---|
|
K02/01 |
10/20 amps |
Relay for low/high beam headlights |
|
K02/02 |
10/20 amps |
Relay for lights |
|
K02/03 |
10/20 amps |
Transmission enable relay |
|
K02/04 |
10/20 amps |
Relay for windshield wiper |
|
K02/05 |
10/20 amps |
Relay for rear window wiper |
|
K02/06 |
1 amp |
Diode for power supply to electronics |
|
K02/06 |
3 amps |
Diode for lights |
|
K02/07 |
1 amp |
Diode for low/high beam headlight relay |
|
K02/07 |
3 amps |
Diode for power supply to control units PC0 and PC6, BCU activation |
|
OU12401,000192B-19-20071210 |
